93116598

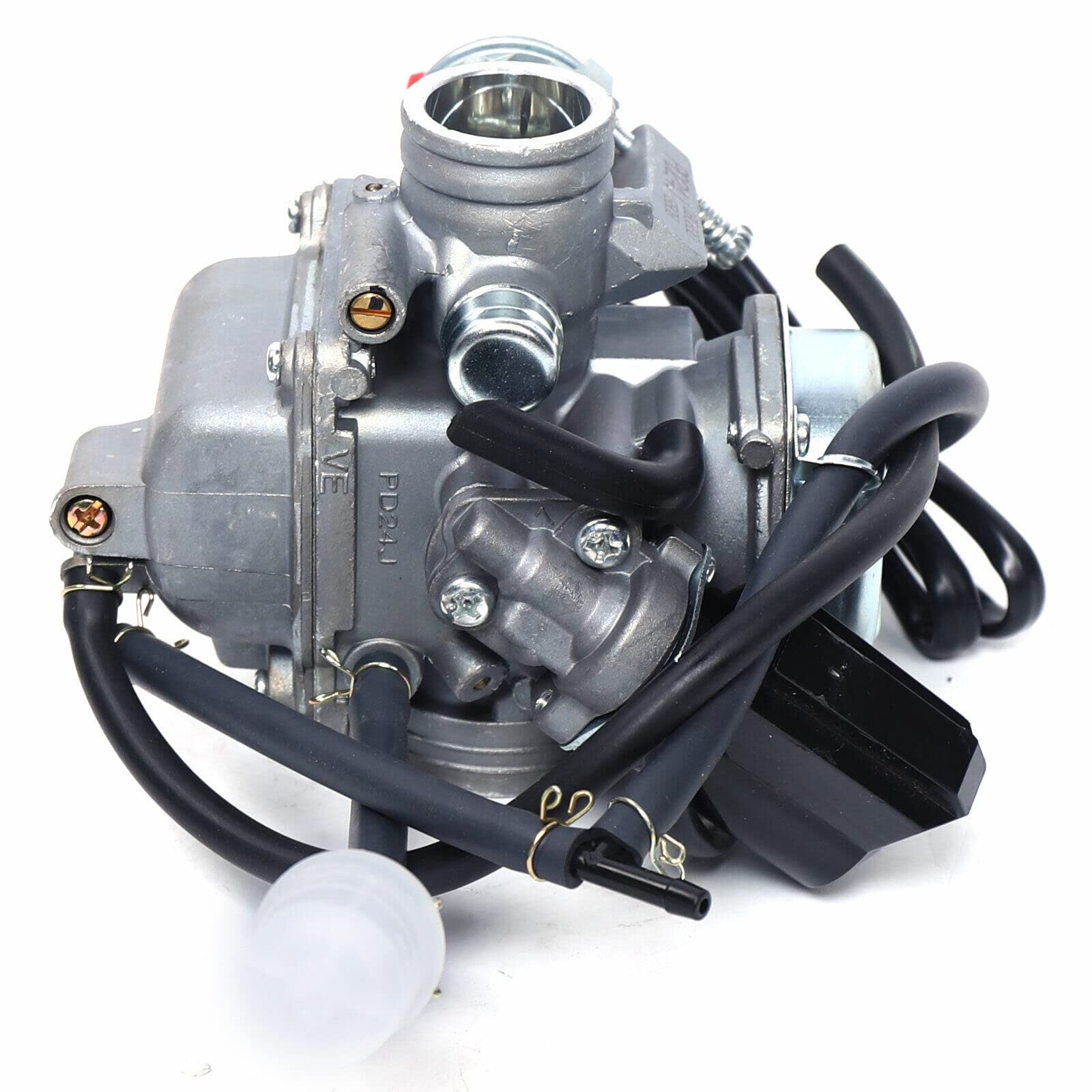

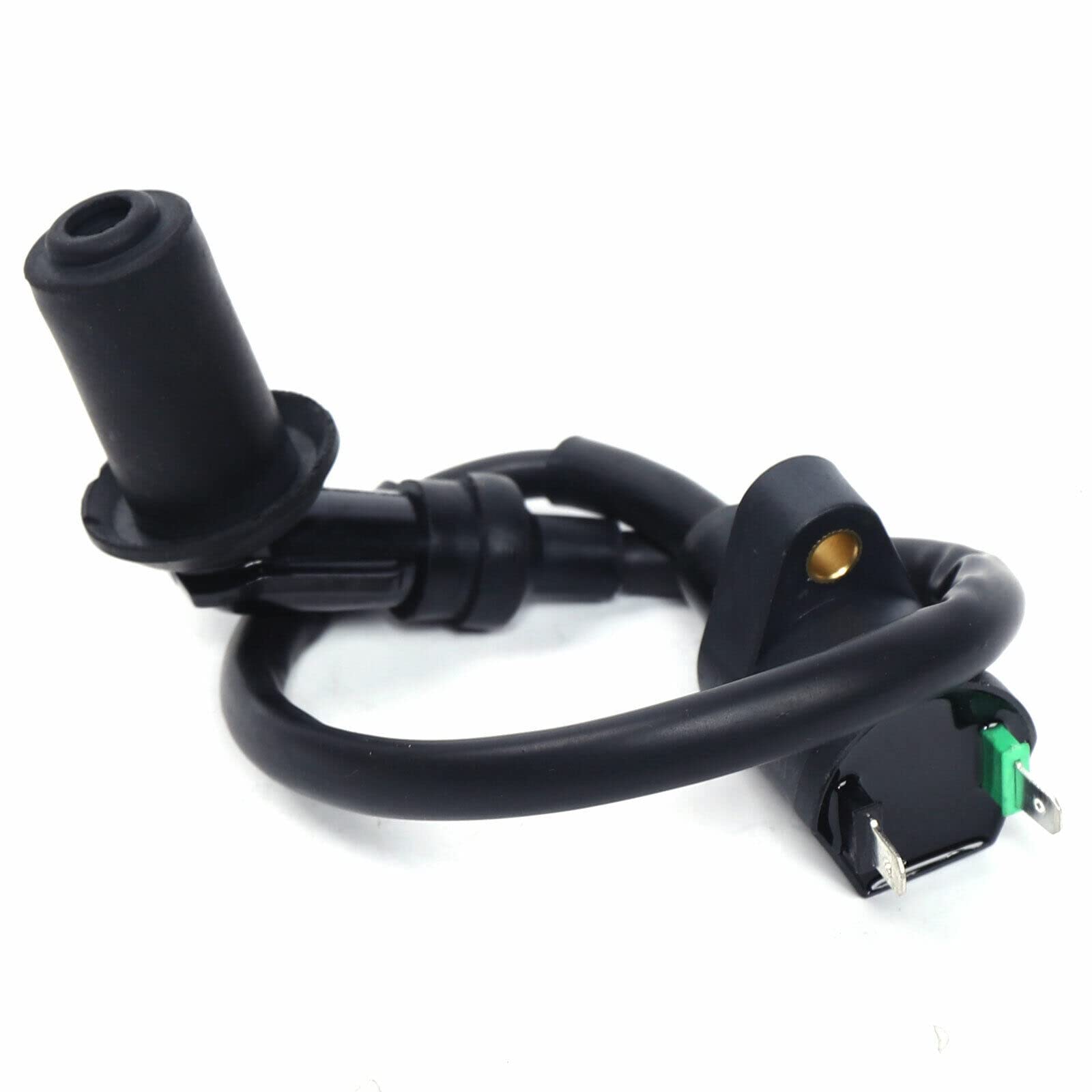

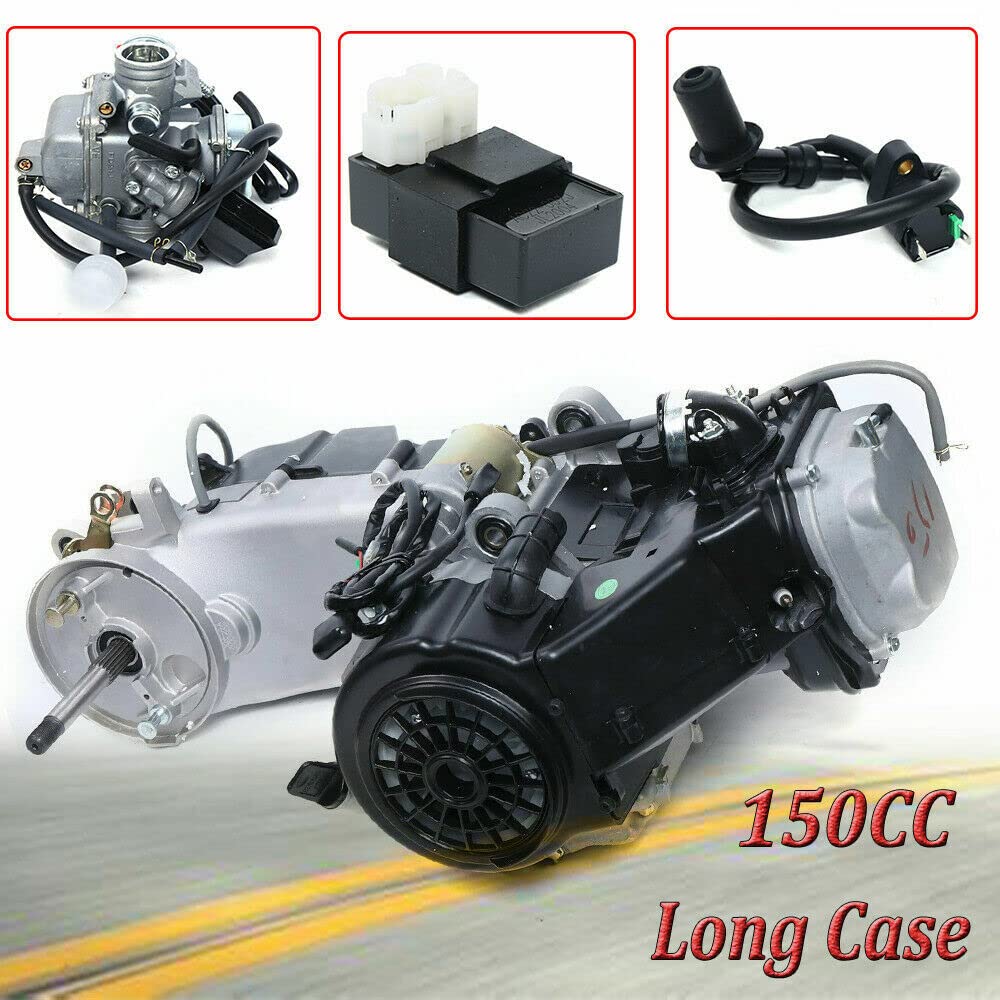

Specification:Engine Type: Gy6 Single Cylinder 4-StrokeEngine Oil Type: Sf15w-40 Not Come with Oil.Carburetor Model：pd24jCarburetor Type：horizontal Vacuum CarburetorSpark Plug Model：a7tcIgnition Type：cfwCooling: Air CooledDisplacement: 150ccMax Power(Kw/R/Min): 6kw/7500r/MinRated Power(Kw/R/Min): 5.2kw/7000r/MinMax Torque(N.m/R/Min):7.6n.m/6500r/MinMin. Stable Idle Speed1600±150r/MinPiston Diameter:57.4mmPiston Stroke: 57.8mmBore & Stroke2.26"" X 2.28"" (57.4mm X 57.8mm)Compression Ratio: 9.2:1Fuel No.: >=87#Lubrication Capacity：0.26 Gallon (1200ml)Clutch：shoe-type Automatic Centrifugal Dry ClutchCylinder Working Volume：0.03 Gallon (149.6ml)Transmission:cvtSpeed: 8 PolesIgnition System: CdiStart Method: Electric/KickInstallation Instructions:not IncludedKick Start Lever: IncludedPackage Includes:1x Complete Engine(Carburetor, Cdi, Starter Solenoid, Coil,Kick Start Lever )Note:1.Installation Manual Is Not Included 2.Professional Installation Is Highly Recommended3.Add Engine Oil Before Use！This Machine Is 11"" Long Case！
⭐【Excellent Performance】The engine's high-flow oil pump reduces friction pair wear and extends engine service life. The aluminum cylinder head and cylinder block improve the engine's heat dissipation capacity, reduce weight, and increase torque. The engine has high torque at low speed, and the crankshaft connecting rod uses large-diameter bearings, which increases the reliability of the bearings.
⭐【Unique Design】The Cvt of the engine is mainly composed of 2 transmission pulleys and 2 transmission belts. Its compact, simple design allows for seamless shifting between an unlimited number of different gear ratios, resulting in smooth acceleration rates. Lubricating oil filters help greatly reduce the wear of friction pairs and extend the service life of the engine.
⭐【Forced Air Cooling】The outside of the engine cylinder is covered with metal fins, and the cooling fan blows air onto the fins to release the heat generated by the engine directly into the air. It has the advantages of simple structure, light weight, wide adaptability to climate change, fast startup, and no need for radiator.
⭐【Main Parameters】Engine Type Gy6 Single Cylinder 4-Stroke; Engine Oil Type Sf15w-40 Not Come with Oil; Carburetor Model pd24j; Carburetor Type horizontal Vacuum Carburetor; Spark Plug Model：a7tc; Ignition Type cfw; Cooling Air Cooled; Displacement 150cc
⭐【Widely Applicable】The engine is suitable for 150cc Gy6 11" long box engine size scooters and vehicles. (Gy6 125cc and 150cc motors have different sizes. The difference is the length of the rear swing arm.) 110cc-150cc ATVs equipped with Gy6 engine and go-karts are compatible with this engine. It also fits most Chinese-made 150cc vehicles. ( Please note this one is a top engine mount.)
